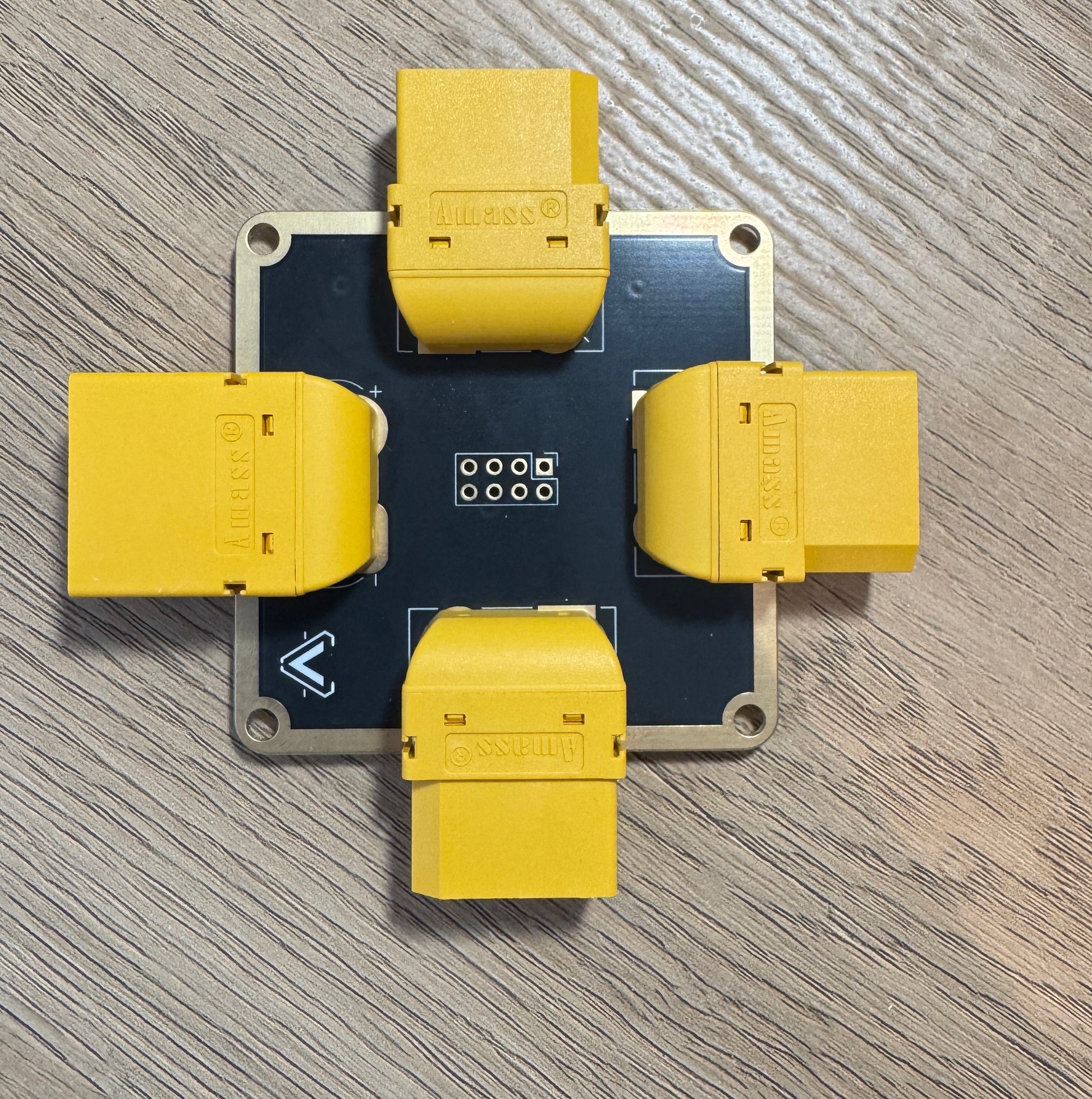

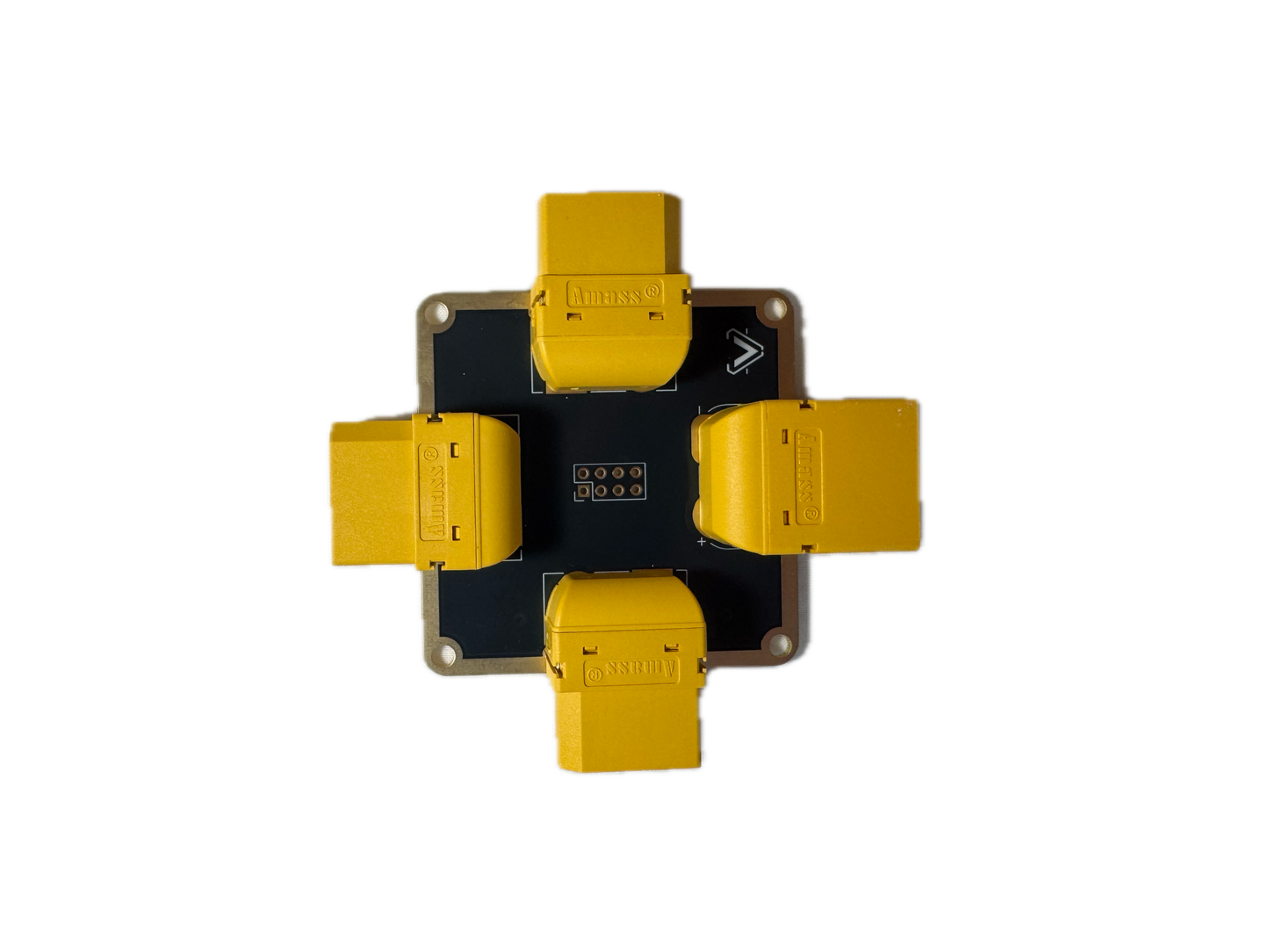

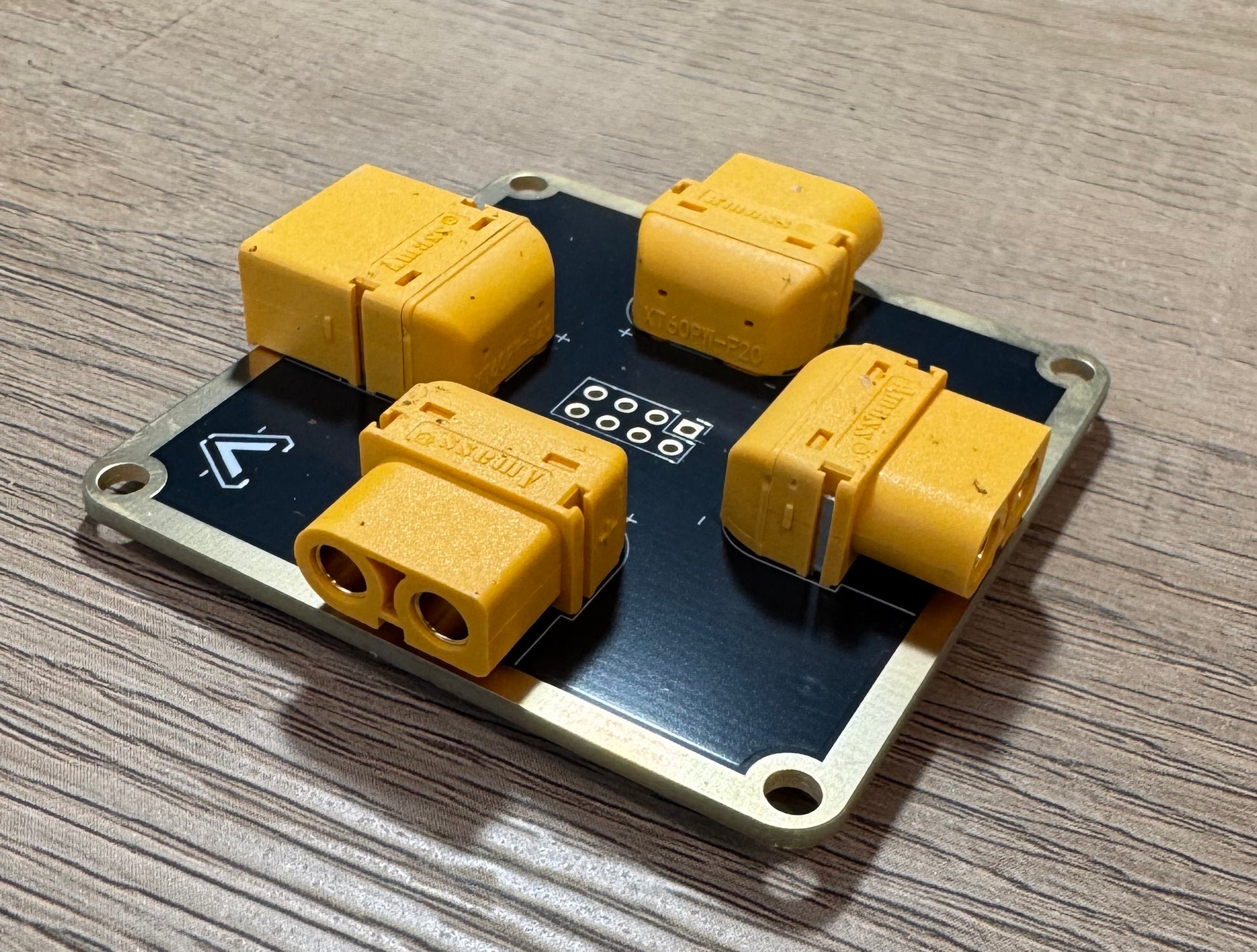

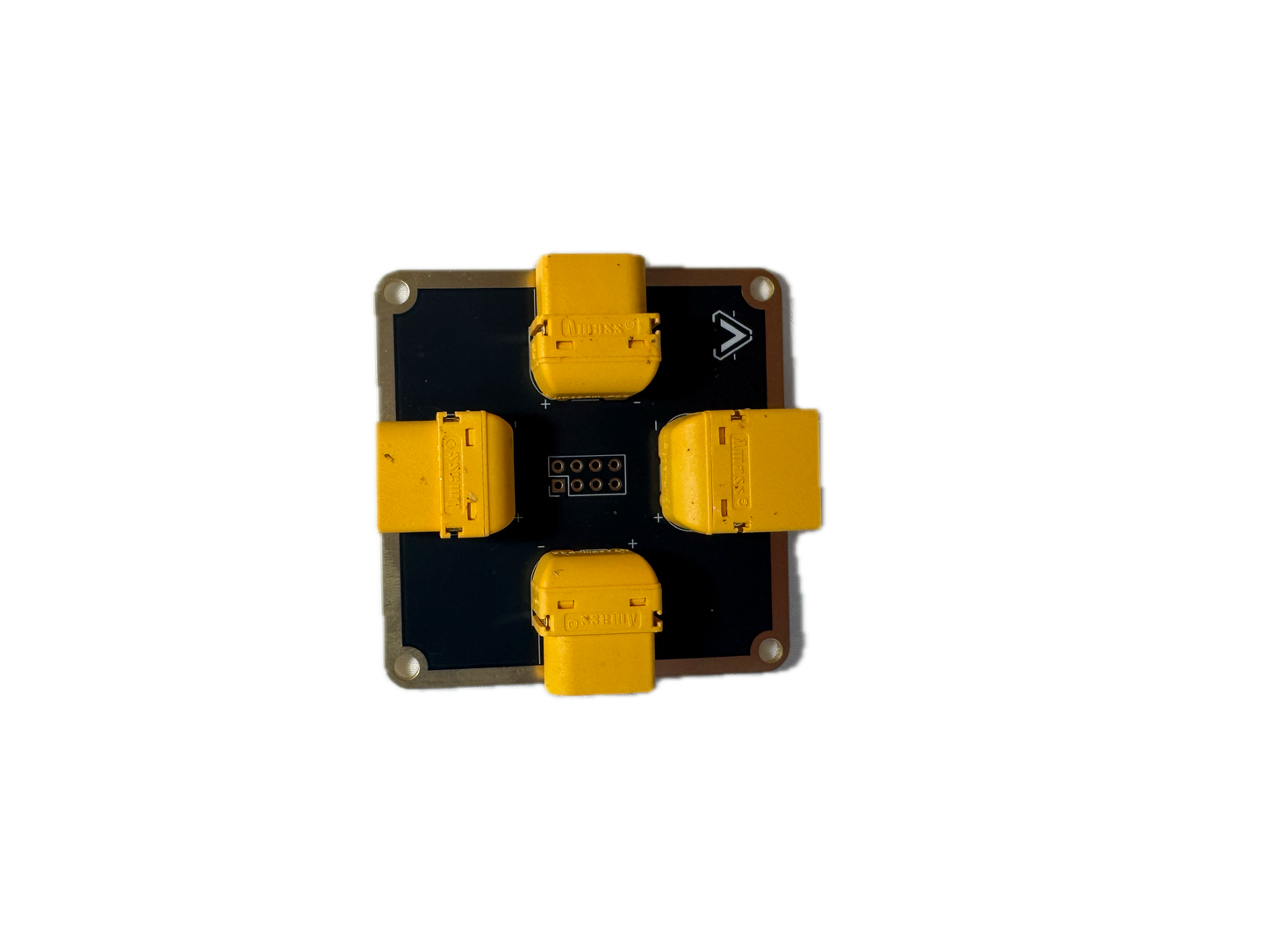

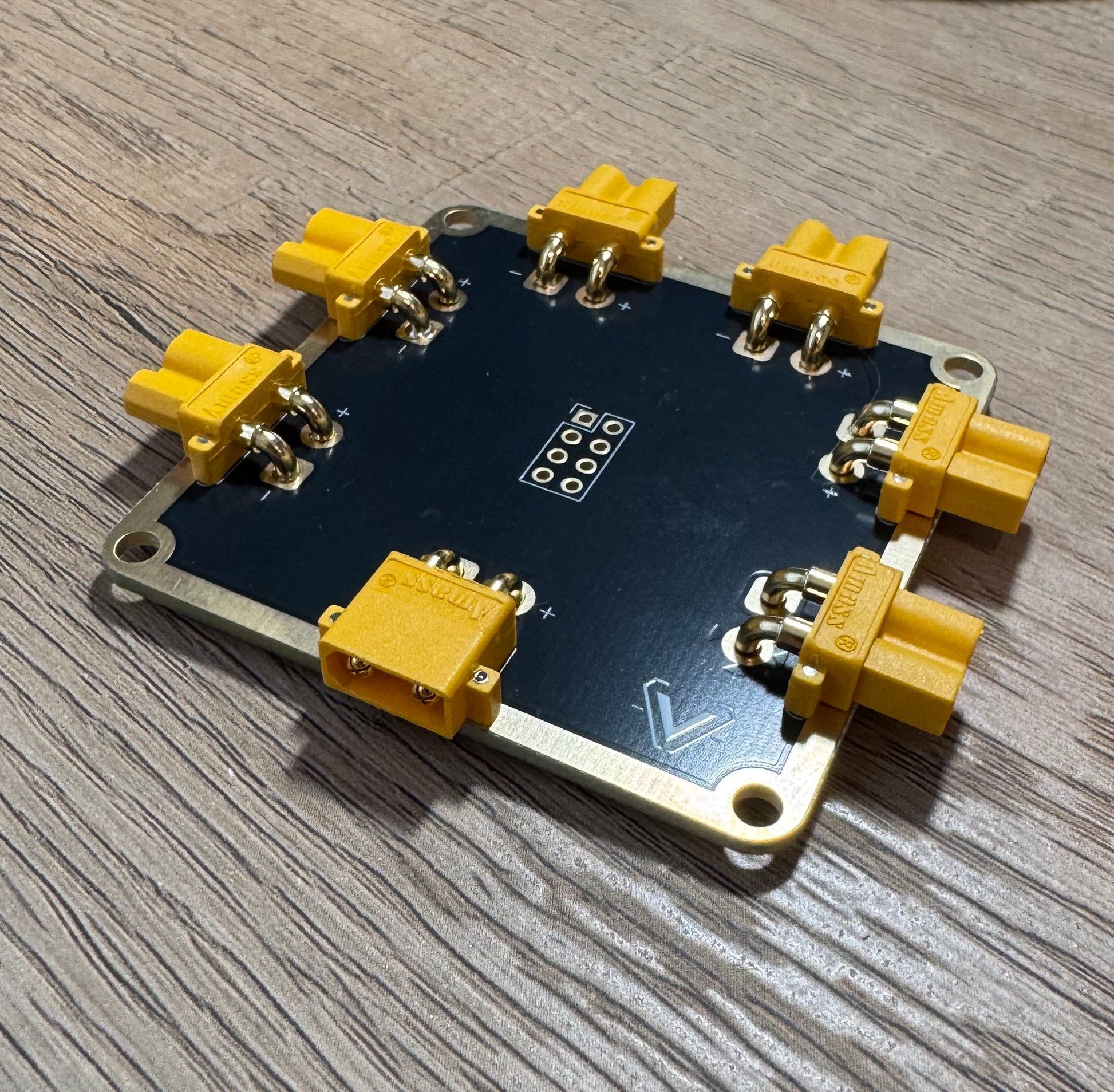

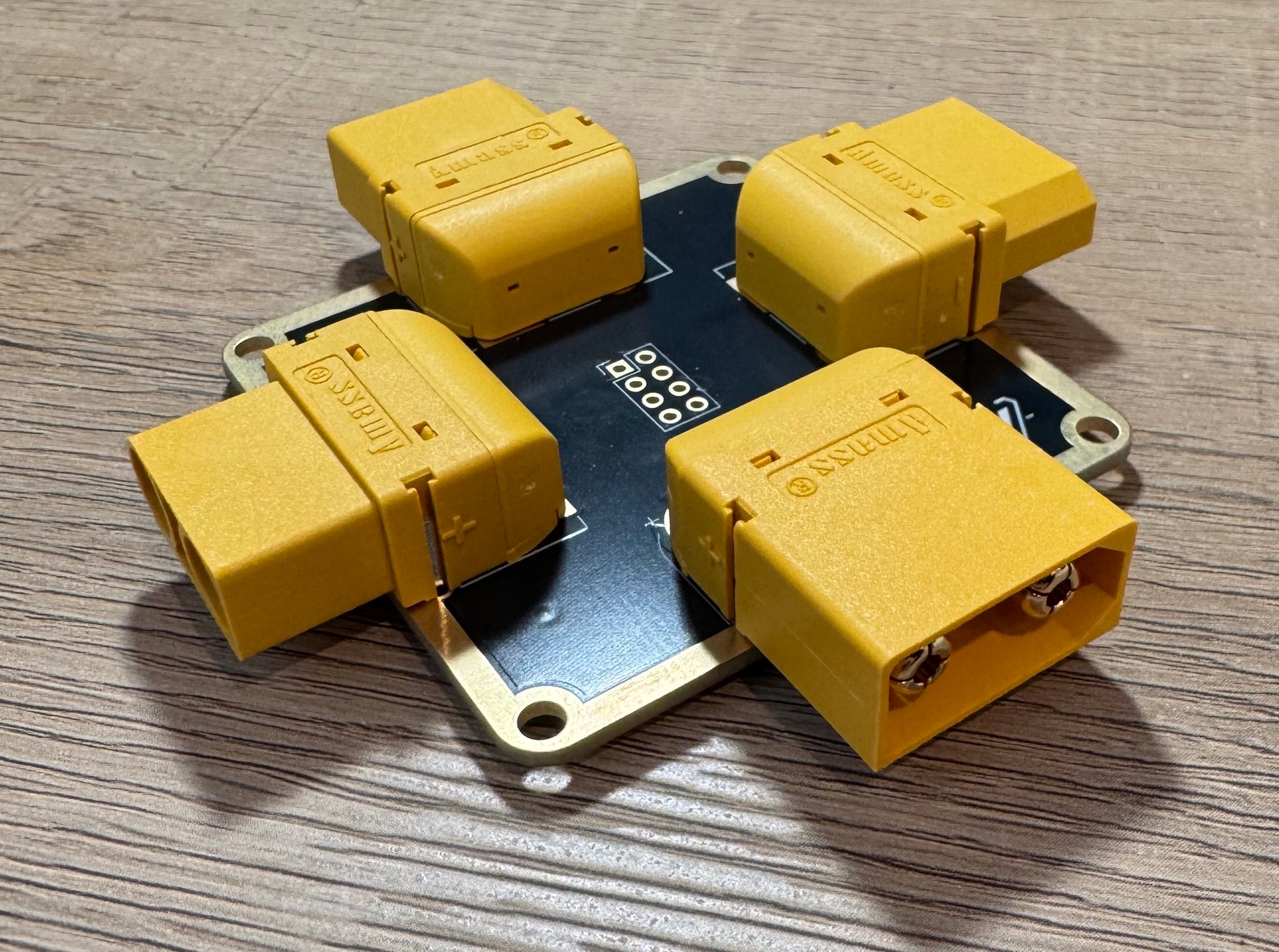

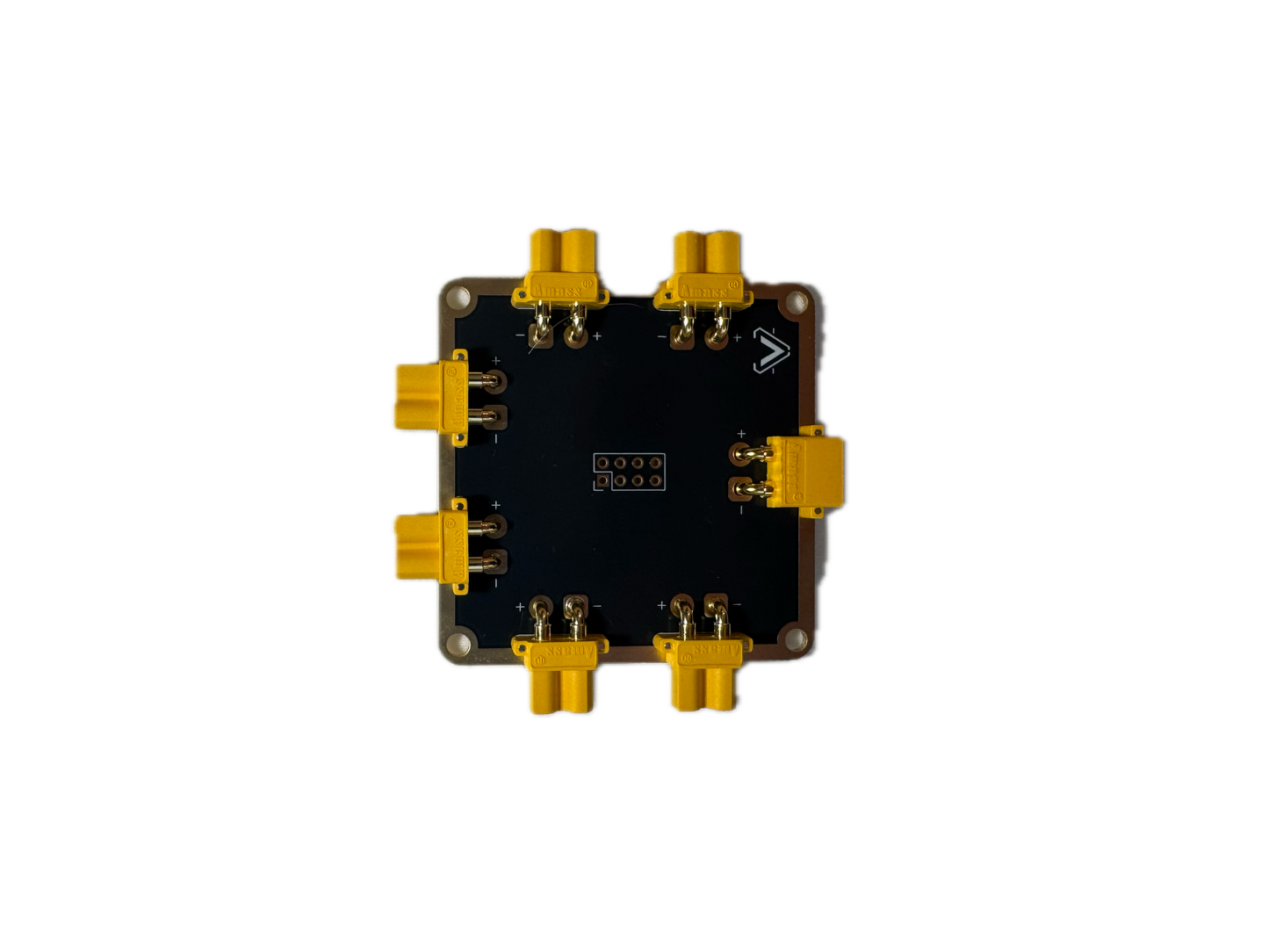

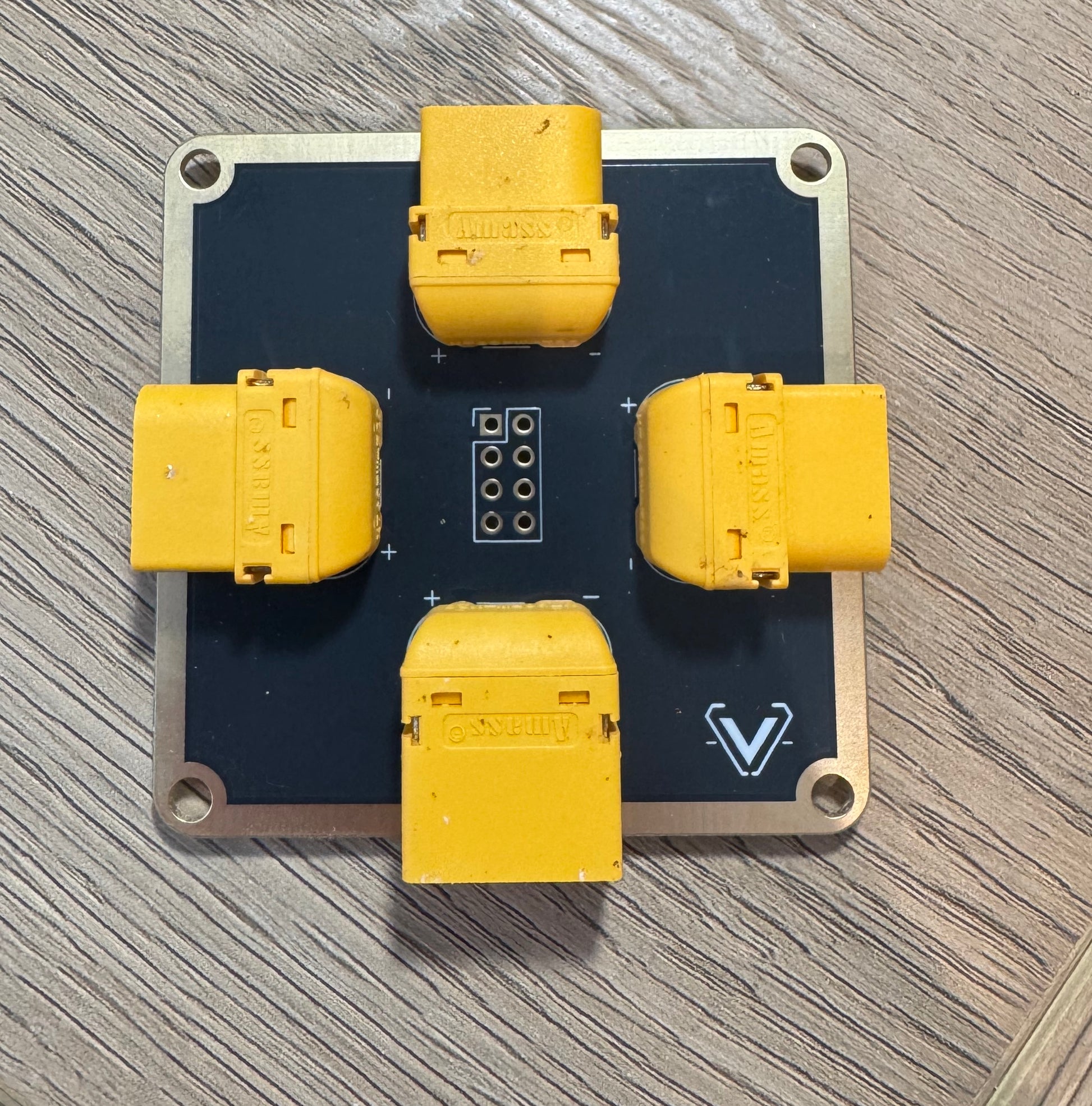

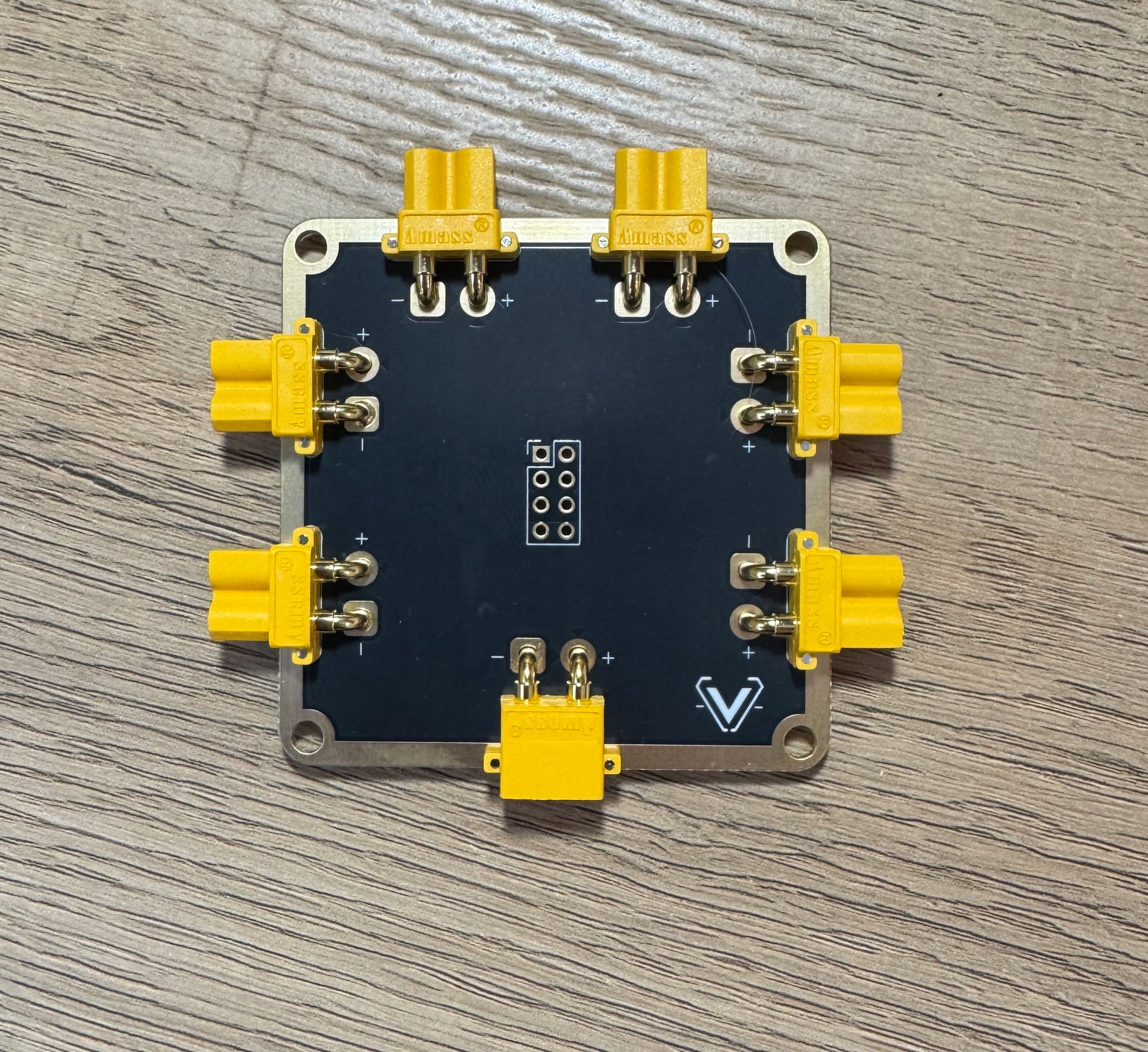

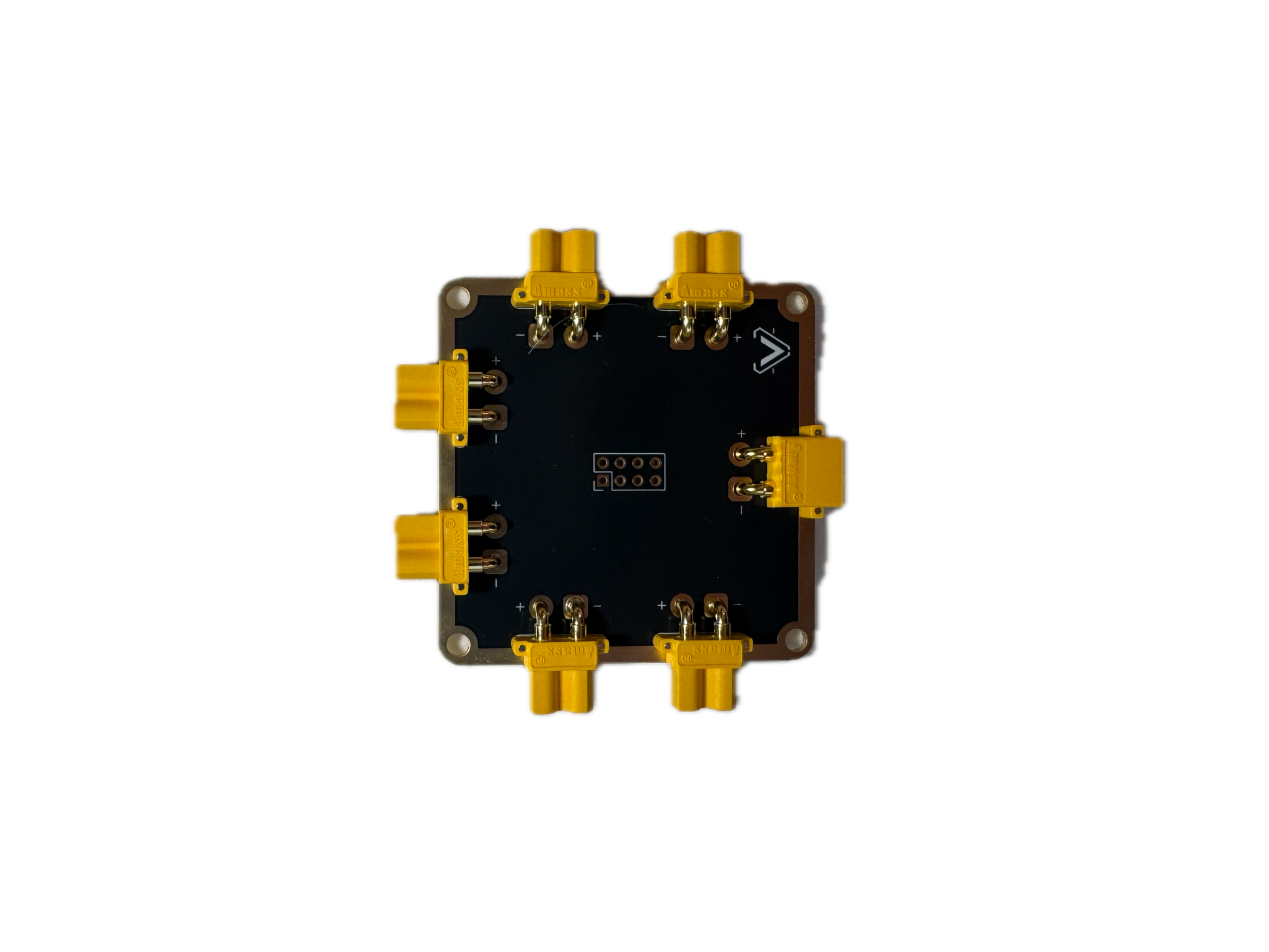

XT90 / XT60 / XT30 Power Splitter Board (Parallel Battery Connector PCB) for UAV

£20.00 GBP

Sale Sold out

Taxes included.

Splitter use XT30 Connector XT60 Connector XT90 Connector

Quantity

SKU:XT30-PS-1

Power up your project with confidence using our XT Connector Power Splitter PCB – the ultimate solution for safe, efficient, and neat power distribution. Say goodbye to messy Y-harnesses and unreliable solder splices: this board consolidates all your battery connections into one robust PCB. Each board is configured with one input and multiple outputs wired in parallel, so the input battery’s voltage is evenly distributed across all outputs. This means you can effortlessly hook up one LiPo pack to numerous devices (FPV electronics, motors, LEDs, etc.) or combine packs in parallel for a single higher-capacity source, all while keeping the wiring clean and organized.

Engineered for performance, the Power Splitter Board uses top-grade materials and design practices. The PCB itself is made from durable FR4 fiberglass and features thick copper pours to carry high currents with minimal loss. Quality Amass XT connectors (XT30, XT60, or XT90 depending on version) come pre-soldered onto the board, ensuring a solid and low-resistance link that won’t heat up under load. Gold-plated contact pads further reduce resistance and prevent corrosion over time, meaning you get consistent power delivery in every flight or drive. With a continuous current capacity of up to 90 Amps, this distribution board is ready for high-demand applications – from beefy quadcopter builds and RC cars to electric skateboards and robots.

Installation is quick and hassle-free. The board’s compact footprint slips easily into tight spaces, and four mounting holes let you secure it with screws or standoffs to your frame. Once mounted, your power wiring will not only look cleaner, but it will also be more secure against vibrations and movement than a bundle of loose cables. If your project grows, the unique stackable header feature allows you to mount an additional board on top to multiply the number of outputs without expanding your layout. This modular approach means your power distribution can scale with your needs – a capability traditional wiring looms simply can’t offer.

In use, the XT Power Splitter Board provides peace of mind and professionalism. No more fumbling with multiple battery leads or worrying about uneven splits – the PCB distributes current uniformly to each output. This not only reduces clutter, but also minimizes the risk of connection failures or short circuits (since the connectors are firmly attached and enclosed on the board). Whether you’re a hobbyist tidying up a DIY drone or a professional engineer prototyping a robotic system, you’ll appreciate the clean look and reliable performance this power board brings to the table. It’s a neater, safer, and smarter way to manage your project’s power needs.

Upgrade your build with this XT splitter PCB and enjoy more time flying or driving, and less time troubleshooting wiring! 🎉🔌
